Teaching an AI to play the real Geometry Dash

What's in the project

Five results — and exactly what each one means

I care more about being precise than impressive. Every claim below says what it actually is, including where it stops.

DQN · PPO · GA

A controlled algorithm comparison

Same observation, reward, and levels; five seeds each. All three solve it — but with its default exploration, PPO traps in a local optimum on 4/5 seeds where DQN and GA don't.

~11% → 35%

Sim-to-real transfer

A policy trained only in the sim drives the retail game via the mod (~11%); a checkpoint search on the real game clears the full cube section (~35%).

100%

Full-level clear

The complete official level — via learning from demonstration: a recorded human run replayed deterministically on the real game. Not autonomous RL, and I say so.

90.7%

Behavior cloning

A network trained on that demonstration predicts the human's jumps at 90.7% validation accuracy (jump F1 0.82) — a genuinely learned imitation policy.

~1.7×

Domain randomization

Training across randomized physics widens the policy's tolerance to the sim-to-real gap by ~1.7× vs a point estimate — the textbook fix, measured with a number.

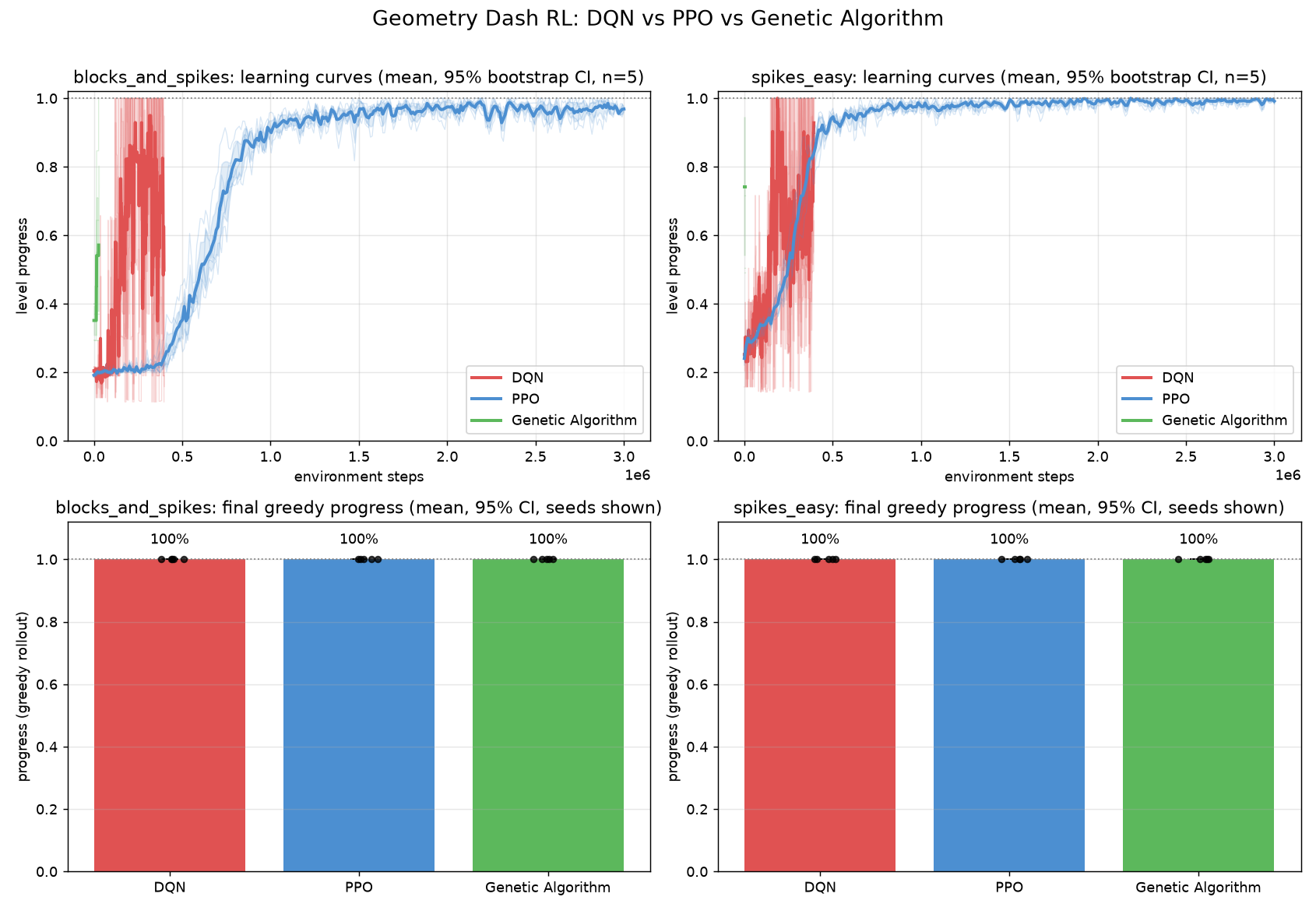

Result #1

PPO isn't always the easy answer

Algorithm	both levels	seeds	out of the box?
DQN (double)	100%	5/5	yes
Genetic Algorithm	100%	5/5	yes
PPO	100%	5/5	needs tuning

Given each method its own hyperparameters, all three solve both levels on all 5 seeds. The catch is what PPO needed to get there — and DQN and GA didn't.

With its default exploration (entropy 0.01), on-policy PPO converges to "take the free progress, don't risk the jump" and stalls at exactly 21.6% on 4 of 5 seeds — through the entire 3M-step budget. A 5× entropy increase (0.01 → 0.05) is the whole difference between 1/5 and 5/5 solved. Value-based and evolutionary methods never fall in. This is the kind of thing a single-algorithm project can't surface.

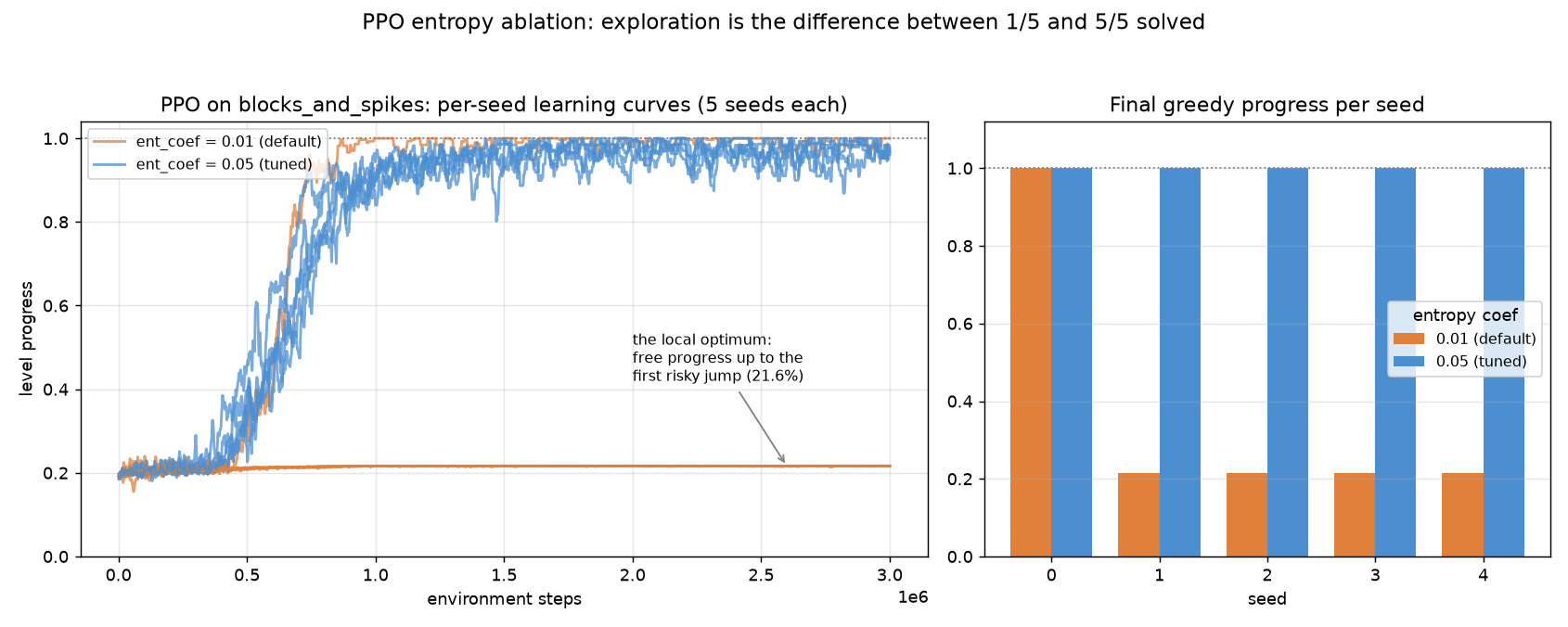

PPO entropy ablation: default exploration traps at 21.6% on 4/5 seeds

Result #2

Closing the sim-to-real gap on purpose

A policy trained on one exact set of physics overfits the sim — which is why the sim-trained agent dies ~11% into the real game. The standard defense is domain randomization: jitter the physics every episode so the policy learns to survive a range, not a single point estimate. I trained DQN with and without it (5 seeds) and measured the tolerance to held-out physics error.

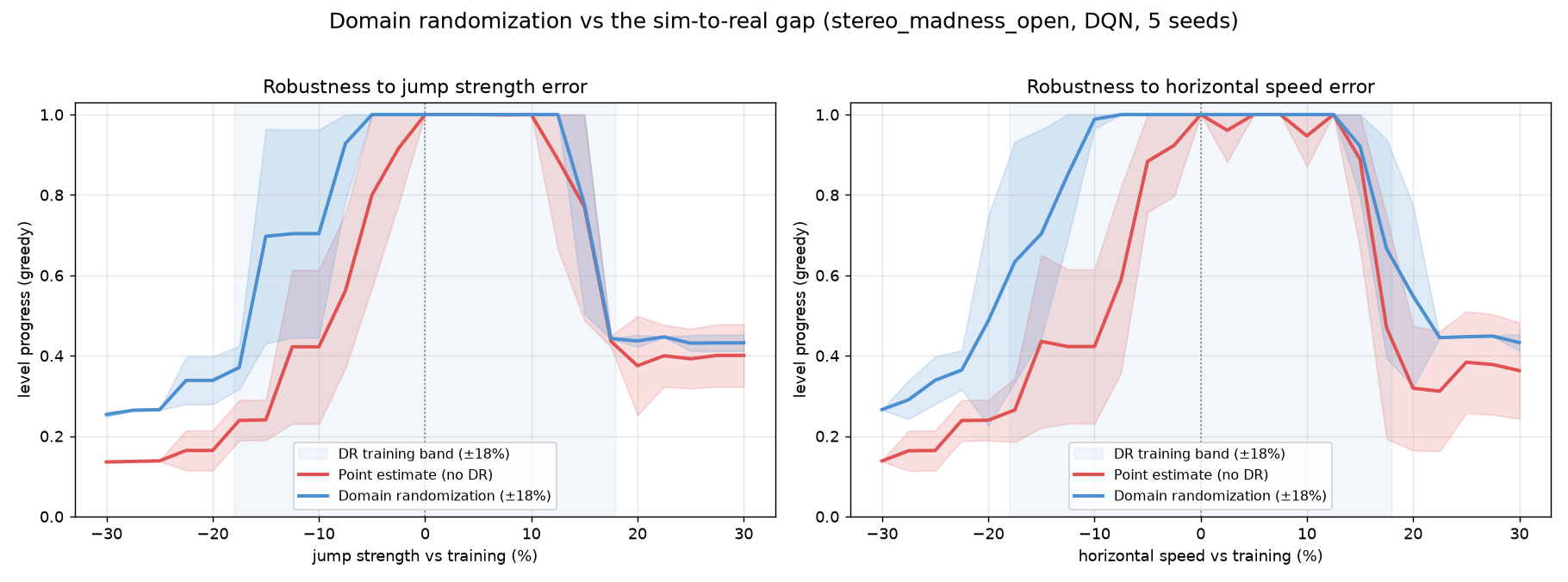

Robustness curves: domain randomization vs point estimate

Domain randomization widens the ≥90%-progress tolerance band ~1.7× on both jump strength and speed, and degrades gracefully where the point-estimate policy cliffs. It's not magic — beyond ±15% both fail at a timing-critical obstacle — but that's the honest ceiling, stated.

Results #3–5

Watch it run

The sim renders shareable clips, and the mod records footage straight off the retail game. A few of them:

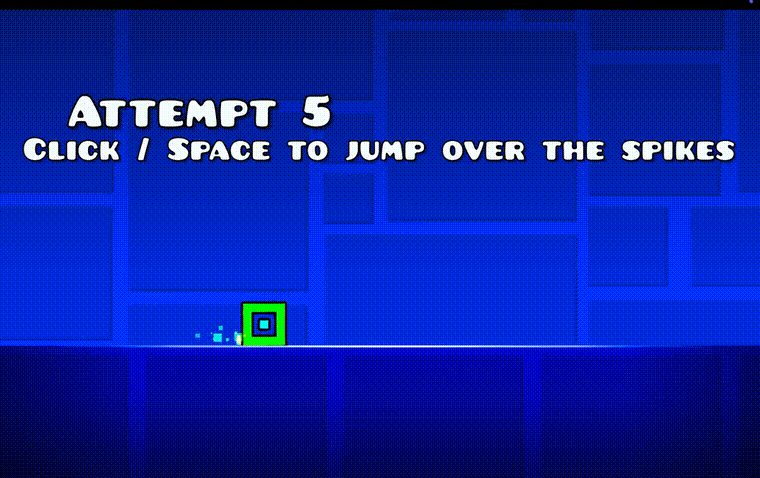

Sim policy, real game. Trained only in the sim; dies ~11% at a physics-gap obstacle.

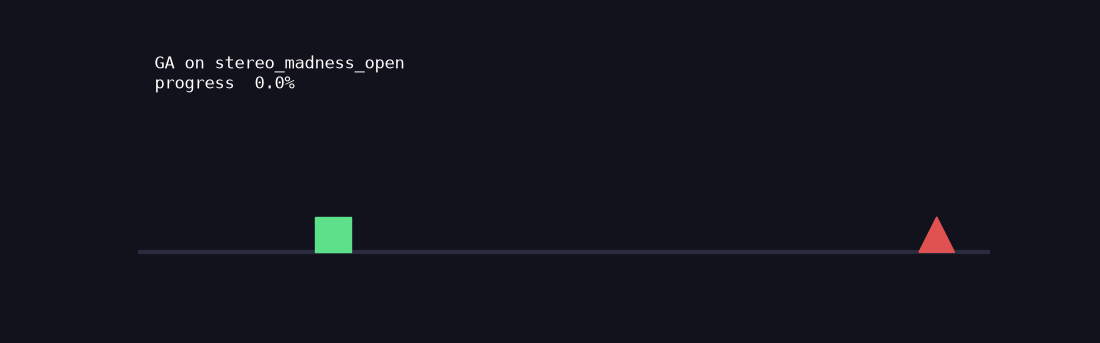

GA clearing the imported opening in the sim

GA in the sim. Trained on the imported Stereo Madness opening.

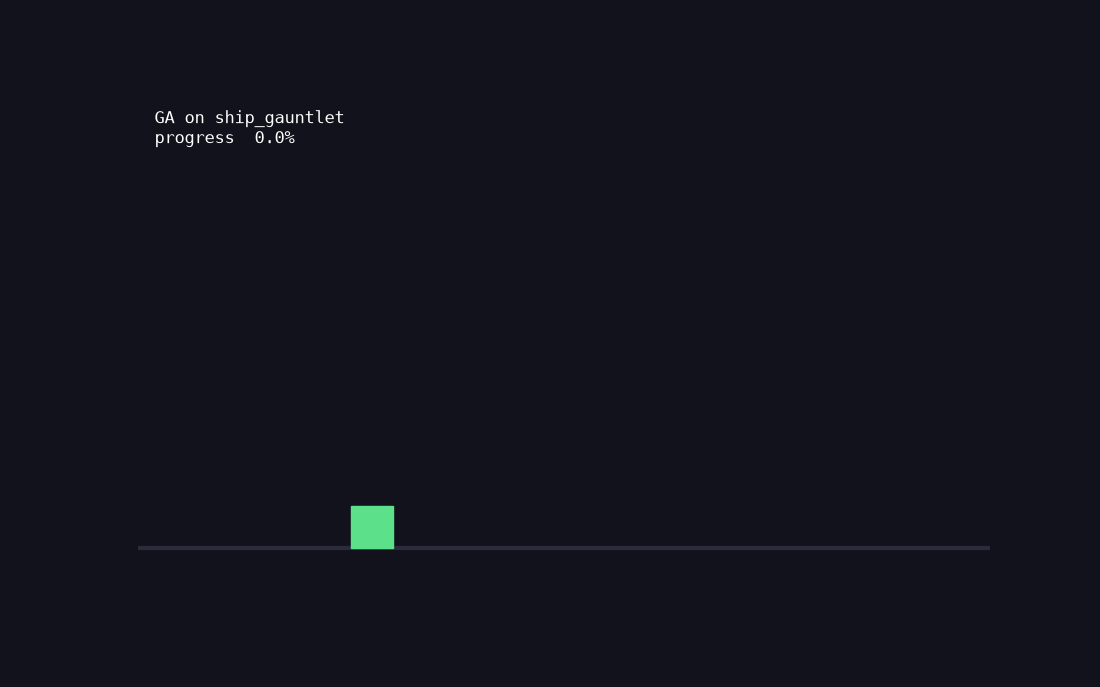

Ship mode. Hold-to-thrust continuous control.

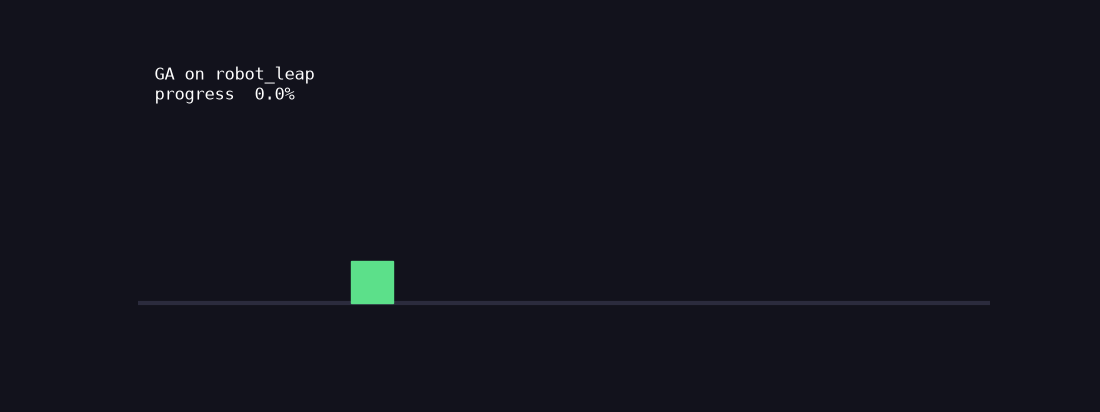

Robot mode. Variable-height jump — hold controls height.

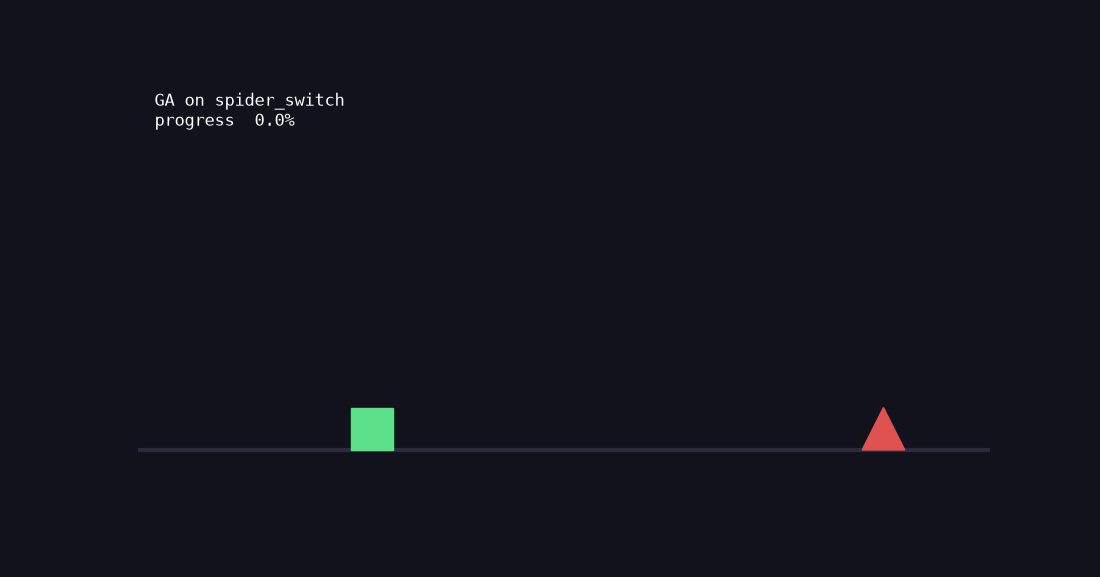

Spider mode. Tap teleports to the opposite surface.

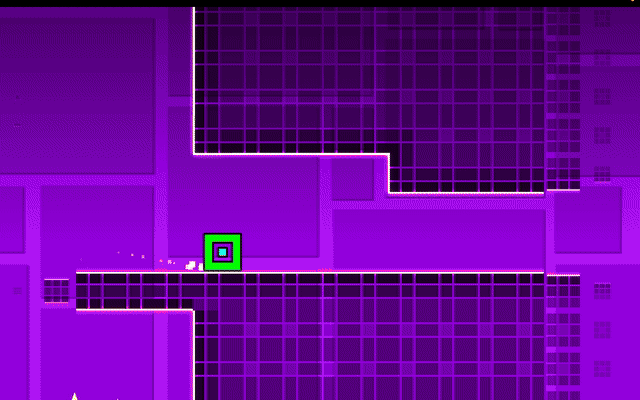

The full clear. Learning from demonstration, 100% on the retail game.

Architecture

How it works

The retail game is the evaluation target, not the training loop — that's the whole idea. Training happens in a simulator thousands of times faster than real time.

Headless sim7 gamemodes, slopes, portals. >2,000× real time on one CPU core.

→

RL agentsDQN (double), PPO (GAE, vectorized), and a genetic algorithm.

→

Python bridgeShared observation builder — the sim and real game look identical to the policy.

→

Geode C++ modHooks the game loop, streams state and injects input over a binary socket.

→

Retail gameGeometry Dash 2.2 on Steam — the real evaluation target.

The part I won't hide

Honest scope & limitations

These are the most credible thing in the whole project, so they go up front, not in a footnote.

The guaranteed full clear is deterministic replay of a human demonstration, not an autonomous RL agent solving the level. The behavior-cloning policy learns the input mapping (90.7%) but drifts on a single frame-perfect level — so replay is used for the exact clear.
Sim-to-real transfer dies at ~11%. I've since calibrated the cube jump against logged real trajectories (the old constants undershot the real apex by ~8%), but closing the gap fully needs more than the jump arc alone.
Non-cube physics are approximate — chosen for plausible motion, pending calibration against logged trajectories; robot and spider are first-pass.
The mod targets macOS + GD 2.2081 (Geode's supported build); uncertain field reads are marked VERIFY in the source.
